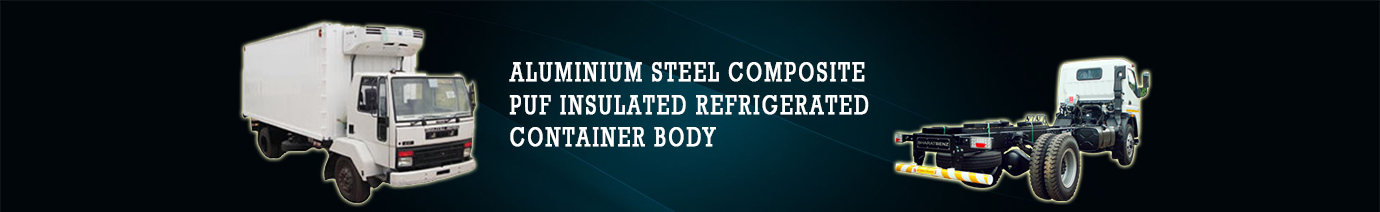

Aluminium Steel Composite PUF Insulated Refrigerated Container Body

Specification:

• Stainless Steel Road Milk Tankers are of double wall construction with 100mm PUF Insulation between the inner tank and the outer tank.
• The inner tank will have high degree of polish finish for Milk storage and transportation.
• The tank will be elliptical in shape with single or multi compartment construction.
• Each compartment will have independent manhole assembly, complete with manhole lid, Pressure vacuum relief valve, air vent and CIP cleaning arrangement. The manhole shall be additionally covered with a Stainless Steel dust cover.
• The milk discharge from the tank will be at the bottom through a discharge cup, pipe line and butterfly valves. Valve box will be located at the rear platform.
• The tank will be having ladder, catwalk, and side protection rail and side protection channels.
• The tank rear shall be provided with a Skirting and a platform arrangement.
• PUF insulated tank is capable of transporting chilled milk at 3°C to 4°C and the average temperature drop of milk in a fully filled tank in a day will be less than 2°C.
• The insulated tank will be integrated with the chassis with a trapezoidal frame and will have adequate slope towards the rear for complete drainage of milk.
• CIP cleaning arrangement will be provided for regular water cleaning and maintenance of the tank.
• Road Milk tanker can be supplied with single/double/triple compartments and capacity in the range of 4000L to 21000L based on the chassis selected.
